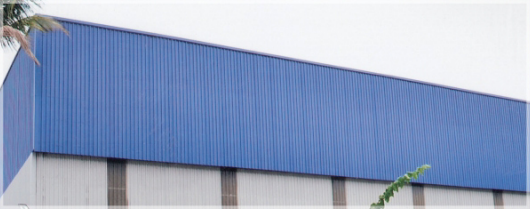

ROOF & WALL CLADDING

A full range of products are available for every type of building.

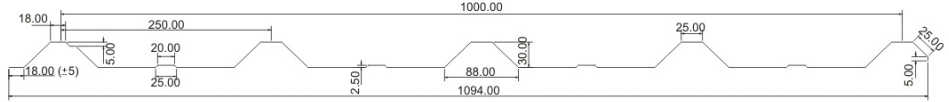

Roof & Wall Cladding Applications: KALPAK 1000 Trapezoidal profiles are used for widely divers applications. Due to Large range of geometric designs, they offer variety of architectural possibility. KALPAK 1000 Trapezoidal profiles are supplied not only in different section and thickness but also various lengths and required dimensions. This profile is suitable for roof and wall panels.

PRE PAINTED GALVANISED IRON (PPGI)

  • Material Confirm to: IS 277, IS 513 & IS 14246
  • Coating on: Hot Dip Galvanised Iron
  • Thickness: Standard Thickness of 0.50 mm TCT
  • Zn Coating (GSM): Zn 120
  • Paint systems: Regular Modified Polyster Paint (RMP) optional (SMP & PVdf)
  • Mpa: 245
  • Primer Service Coat: 5u microns epoxy
  • Top Coat (Exposed surface: 18 u to 20 u
  • Bottom Coat): 5u to 7u

PRE PAINTED GALVANISED STEEL SHEETS (PPGL)

  • Material Confirm to: AS 1397
  • Coating on: Galvalume
  • Thickness: Standard Thickness of 0.50 mm TCT
  • Paint systems: Regular Modified Polyster Paint (RMP) optional (SMP & PVdf)
  • Mpa: 245 / 350 / 550 Mpa
  • Primer Service Coat: 5u microns epoxy
  • Top Coat (Exposed surface: 18 u to 20 u
  • Bottom Coat): 5u to 7u

GALVALUME MILL FINISH (BARE GALVALUME)

  • Material Confirm to: AS 1397
  • Coating on: Colid Rolled Steel
  • Thickness: Standard Thickness of 0.47 mm TCT
  • AL-Zn Coating (GSM): AZ 150
  • Mpa: 245 / 350 / 550 Mpa

AVAILABLE LENGTH

  • KALPAK 1000 Profile: Available length up to 12 m.
  • Thickness Range: 0.45mm to 0.60mm


Kalpak Industries

CURVED SHEET


Curve sheets are available from profile, Curving through computerised PLC controlled crimping machine. The minimum radius of curve is 500 mm, start lead is 50 mm & end lead is 350 mm. The minimum length of curved is 790 mm. thereby making length of curved sheet possible as 1190 mm, length restrictions apply to curved sheets. Curved sheet in high tensile metal is supplied at customers risk. KALPAK 1000.
